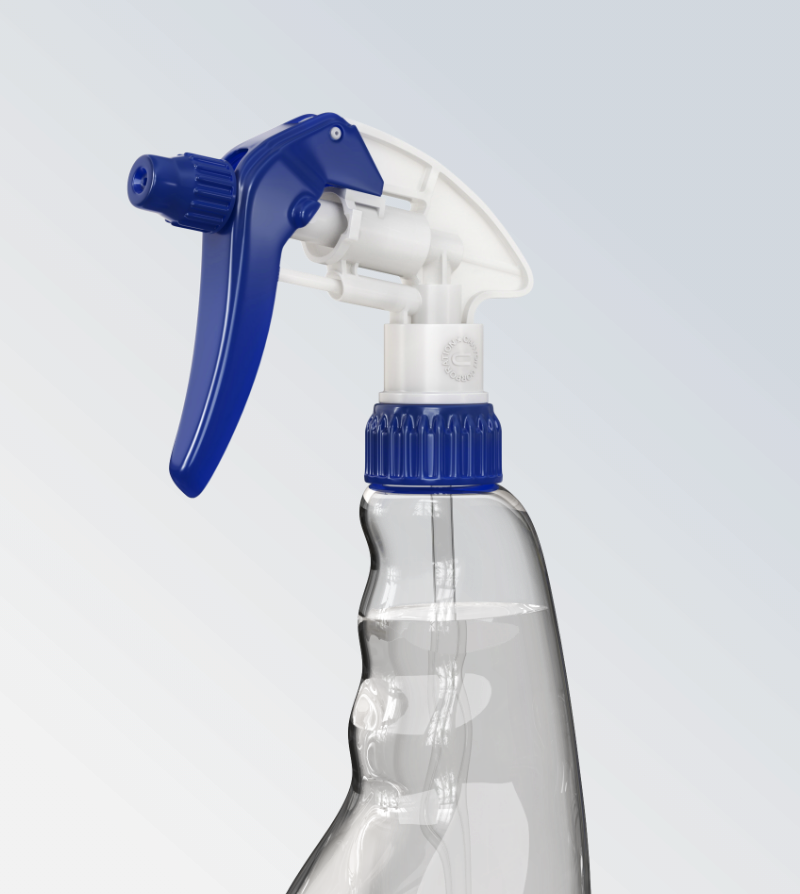

CHS-3A (Super)

Manufactured from carefully selected and rigorously tested materials.

Features

A closable twist nozzle system, allowing an adjustable spray or jet function.
A sealed venting system allows the sprayer to be shipped and filled with liquid, reducing costs.
Two types of closure are available providing a wide range of bottle compatibility; 28/400 or 28/410.
Highly chemical-resistant industrial trigger sprayer especially suited for solvent-based liquids.
Suitable for heavy-duty tasks.
Available in a wide range of colours.

Benefits

Customisable. Contact the team to choose your cap, colour and tube

Designed with ease of use in mind. Even when wearing protective gloves

Sealed venting system allows bottles to be shipped filled with liquid

Resistant against even the most aggressive liquids

Technical info

Spray output per stroke	1.1cc + 0.2cc (water)
Spray pattern	170mm + 30mm (150mm distance)
Nozzle orifice	0.4mm
Weight	50g
Spray angle	0o ~ 60o
Endurance	minimum 50,000 trigger pulls

Technology

Along with its robust design and composition, the CHS-3A Super provides a closable twist nozzle system allowing for an adjustable spray or jet function.  It functions by allowing the liquid to travel up the tube, past the ball valve and into the cylinder, filling the spring-loaded piston.  Once the trigger is pulled, the liquid passes the second valve before exciting the nozzle via the spinner.

Solutions

We have a wide variety of different options for the CHS-3A Super in order to meet all your challenges, from cap sizes to various colours as well as bespoke tube lengths. Get in touch with our sales team today who will endeavour to find a solution to fit your needs.
